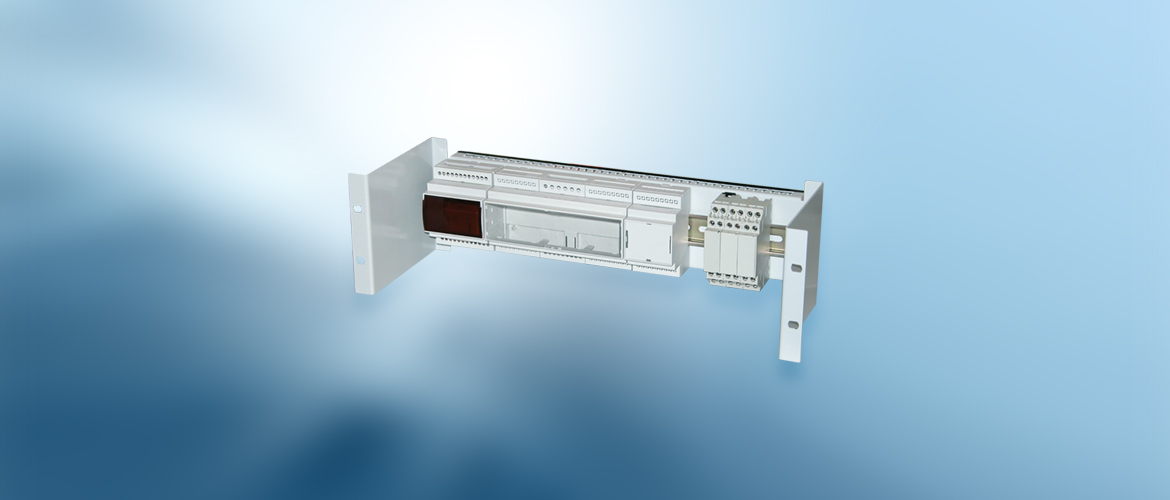

19"- DIN rail support 3 U

By using the 19″-DIN rail support 3 U, cap rail enclosures can be mounted recessed onto the 19″-frame. Due to its solid and partially closed structural form the 19″-DIN rail support offers a high level of protection and is well suited for the fixation of small cases that contain electronics. An integrated cable catch with strain relief on the back ensures a well structured cable management. The front panel, which can be obtained optionally, serves as protection against contact and allows a closure on all sides.


  • stable, partly closed structure for a high level of protection
  • well structured cable management
  • optional front panel available
  • standard configuration with cap rail TS 35/7,5 B = 425 mm
  • other top hat rail types , installation widths / hights / depths available on request
  • special version with safety cut-outs available for circuit breakers
  • delivered unmounted

Illustrative animation movie of the 19″-DIN rail support 3 U:

Cover (protection against contact)

*To mount the cover, the lateral flaps can be bent up by hand in two different positions.
