Accessory set for DIN rail application

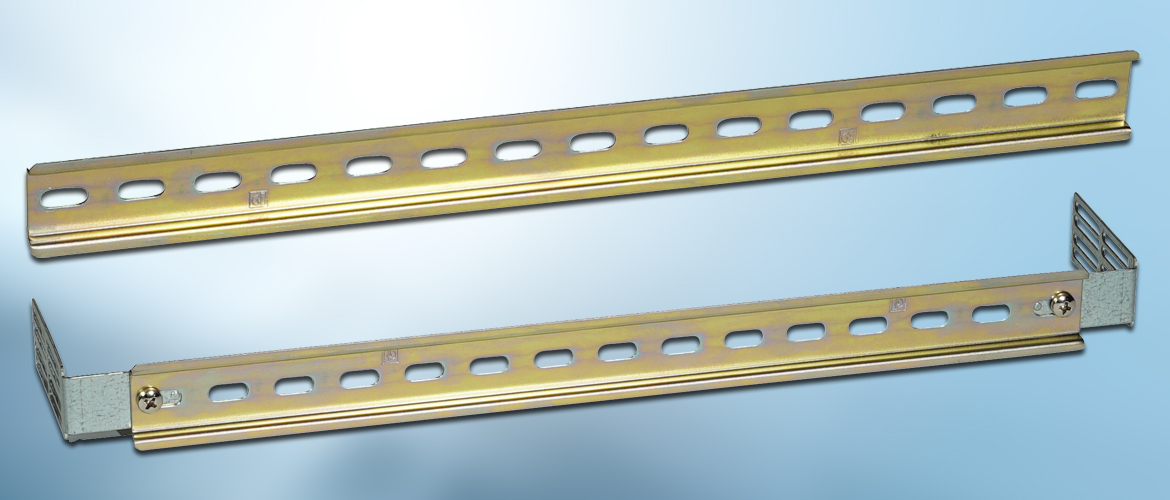

There are several installation sets for the integration of DIN rails into 19-inch plug-in units. By using them, DIN rails can be mounted onto the available components wihtout any additional processing. The installation sets differ according to the mounting position. Basically there are two different applications.

The DIN rail can either be installed onto the perforated base plate or on the side panels by using assembly brackets. By using the perforation, the single DIN rail can be fixed to various base plate positions [1].

Accessory est for DIN rail appications

When ordering the DIN rail with assembly brackets these are adjustable in depth [2]. Complementary, a front panel which is powder-coated and made out of aluminium with a cut-out for circuit breakers is available [3]. Optionally the 19-inch plug-in unit can be fitted with a back panel that provides cable entry.

mounting of DIN railsfront-panel with a cut-out for circuit breakers

Highlights

  • easy integration of DIN rails into 19″-plug-in units
  • installation without additional processing
  • differtent installation sets for differtent applications
  • matching front-panel with a cut-out for circuit breakers available
  • optional back panel that provides cable entry available
